Picture of Piezo Ceramic Disk 5x0.4mm R 450 KHz
Picture of Piezo Ceramic Disk 5x0.4mm R 450 KHz Picture of Piezo Ceramic Disk 5x0.4mm R 450 KHz

Piezo Ceramic Disk 5x0.4mm R 450 KHz

SMD05T04R411 - 5 Pc/Set
Manufacturer part number: SMD05T04R411
Availability: 609 in stock
$19.50
$11.99
$0.00
/5 Pcs Set
Condition: New

Part Number: SMD05T04R411

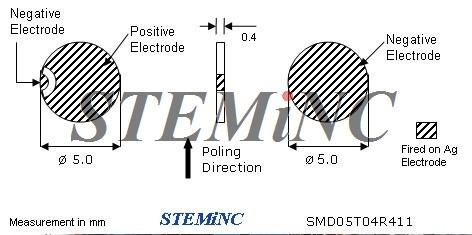

Piezoelectric Ceramic disc. Silver electrodes being two electrodes on the same side (R configuration).  Radial mode vibration application

Piezo Material: SM411
Dimensions: 5mm X 0.4mm
Resonant frequency fr: 450 KHz±10 KHz
Electromechanical coupling coefficient Kp:
Resonant impedance Zm:
Static capacitance Cs: 1050pF±15%
Test Condition: 25±3 °C 40~70% R.H.
fr, Zm, Kp => Radial mode vibration application
Cs => LCR meter at 1KHz 1Vrms

Applications: Piezo transducer for vibration, transducer for matter dispersion, sonar transducer Ultrasonic sensor, vibration sensor, wall thickness sensor, material stress sensor, pressure sensor, energy electricity harvesting, compression sensor, piezo expansion sensor and others.

Specification of products can change without notice.
