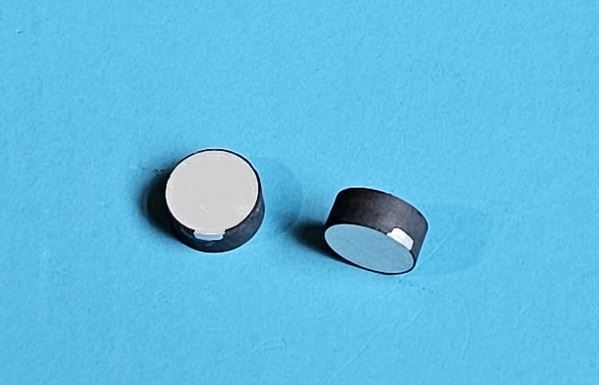

Picture of Piezo Disc Wrap Electrode 10mm 500 KHz
Picture of Piezo Disc Wrap Electrode 10mm 500 KHz Picture of Piezo Disc Wrap Electrode 10mm 500 KHz

Piezo Disc Wrap Electrode 10mm 500 KHz

SMD10T4R111 - 2 Pc/Set
Manufacturer part number: SMD10T4R111
Availability: Out of stock
$18.50
$11.99
$0.00
/2 Pcs Set
Condition: New

Part Number: SMD10T4R111

Piezo Electric Ceramic Disc Transducer. Both electrodes on one side (R configuration).  Thickness mode vibration

Piezo Material: SM512
Dimensions: 10mm diameter x 4.3mm thickness
Resonant frequency fr: 500 KHz±10 KHz
Electromechanical coupling coefficient Kt:≥37%
Dielectric Loss tg δ: ≤.60%
Zr: 11 Ω
Static capacitance Cs: 230pF±15%@1kHz
Test Condition: 23±3 °C 40~70% R.H.
fr, Zm, Kp => Thickness mode vibration
Cs => LCR meter at 1KHz 1Vrms

Applications: Piezo transducer vibration, matter dispersion, Ultrasonic Sensor, wall thickness sensor, material stress sensor, pressure sensor,piezo electricity harvesting, compression sensor, piezo expansion sensor, biomedical probe and others.
Notes: The max voltage that this transducer can withstand is 135V.

Specification of products can change without notice.
