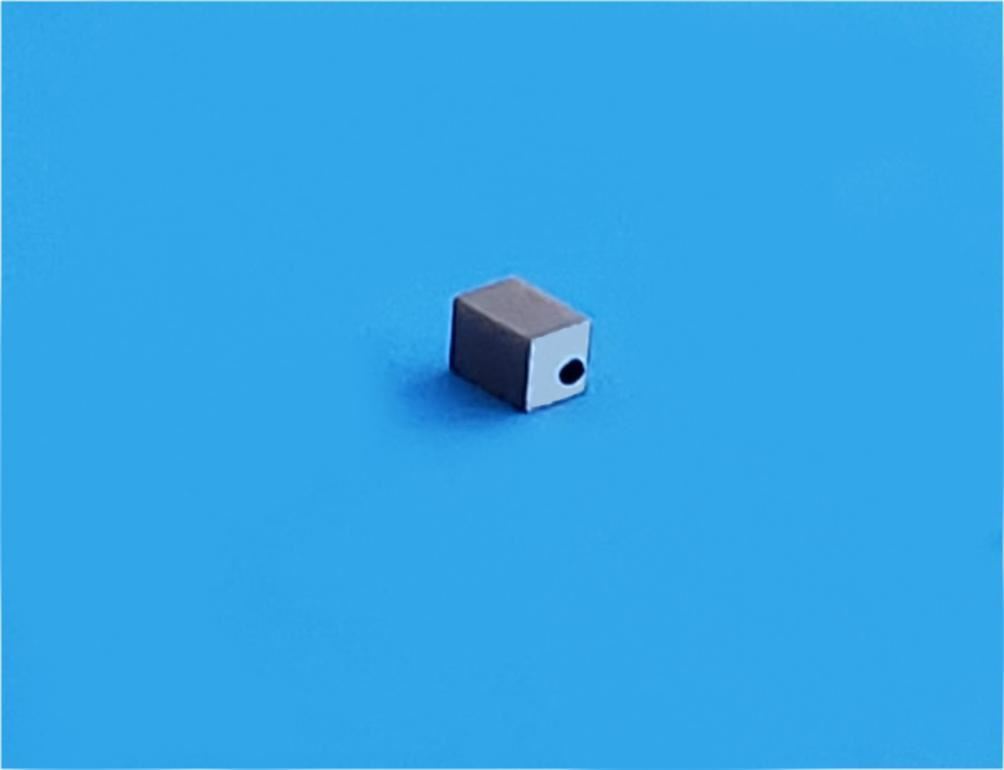

Picture of PZT Ceramic Block 2.1x2.1x3mm 515 KHz

PZT Ceramic Block 2.1x2.1x3mm 515 KHz

SMBLK2W2T3F515S - 1 Pc/Set
Manufacturer part number: SMBLK2W2T3F515S
Availability: 794 in stock
$9.75
$11.99
$0.00
/1 Pcs Set
Condition: New

Part Number: SMBLK2W2T3F515S

Piezoelectric ceramic block with Silver Layer electrodes on both sides.

Piezo Material: SM118
Dimensions: 2.1 x 2.1 x 3 mm
Resonant frequency fr: 515 KHz±10 KHz
Electromechanical coupling coefficient K33: ≥0.53%
Resonant impedance Zm: ≤150 Ω
Static capacitance Cs: 18.3pF±15%@1kHz
Test Condition: 23±3 °C 40~70% R.H.
Cs => LCR meter at 1KHz 1Vrms

Applications: Ultrasonic Sensor, Vibration Sensor, Material stress sensor, Pressure sensor, Vibration generation, Energy/Electricity harvesting, compression sensor and others.

Specification of products can change without notice.
