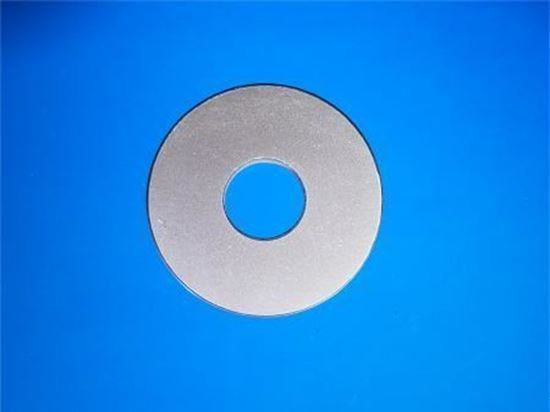

Picture of PZT Ceramic Ring 19x4.97x2mm 1 MHz

PZT Ceramic Ring 19x4.97x2mm 1 MHz

SMR1905T02111- 2 Pc/Set
Manufacturer part number: SMR1905T02111
Availability: Out of stock
$21.94
$11.99
$0.00
/2 Pcs Set
Condition: New

Part Number: SMR1905T02111

Piezoelectric Ceramic Ring with Silver electrodes on both sides. Thickness mode vibration.

Piezo Material: SM111
Dimensions: OD 19 x ID 4.97 x Th 2mm
Resonant frequency fr: 1.1MHz ± 3%
Electromechanical coupling coefficient Keff: ≥45%
Resonant impedance Zr: ≤0.69 Ω
Static capacitance Cs: 1400pF±15%@1KHz
Test Condition: 25±3 °C 40~70% R.H.
fr, Zm, Kp => Thickness mode vibration
Cs => LCR meter at 1KHz 1Vrms

Applications: Ultrasonic Sensor, Vibration Sensor, Pressure sensor, Vibration generation, Piezo expansion sensor, compression sensor, Tonpilz Transducer and others.

Specification of products can change without notice.



Additional Notes:
