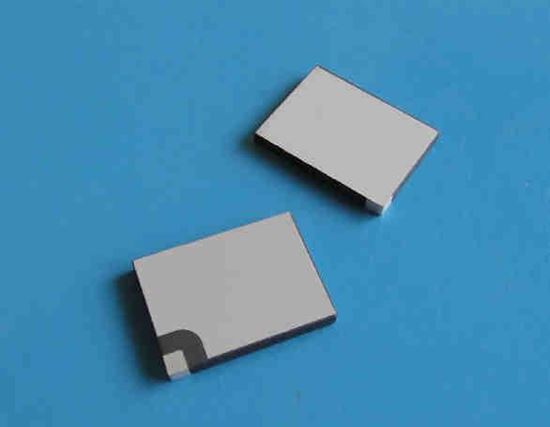

Picture of Piezo Ceramic Plate 20x15x3mm 710 KHz

Piezo Ceramic Plate 20x15x3mm 710 KHz

SMPL20W15T3R111
Manufacturer part number: SMPL20W15T3R111
Availability: Out of stock
$19.98
$12.99
$0.00
/2 Pcs Set
Condition: New

Part Number: SMPL20W15T3R111

Piezoelectric Ceramic Plate ideal for electricity generation and pressure sensor. Silver electrodes being on the same side (R configuration).
Thickness mode vibration application

Piezo Material: SM111
Dimensions: 20x15x3mm
Resonant frequency fr: 710 KHz ± 5%
Electromechanical coupling coefficient Kt: ≥42%
Resonant impedance Zm: ≤4.7 Ω
Static capacitance Cs: 1307pF±10%
Dielectric Loss Tan∂: 0.29
Test Condition: 23±3 °C 40~70% R.H.
fr, Zm, Kp => Thickness mode vibration application
Cs => LCR meter at 1KHz 1Vrms

Applications: Precision mechanics and mechanical engineering. Life sciences, Medicine and Biology. Pneumatic & Hydraulic valves. Nano positioning/ High-speed switching. Active and Adaptive optics. and others.

Specification of products can change without notice.
